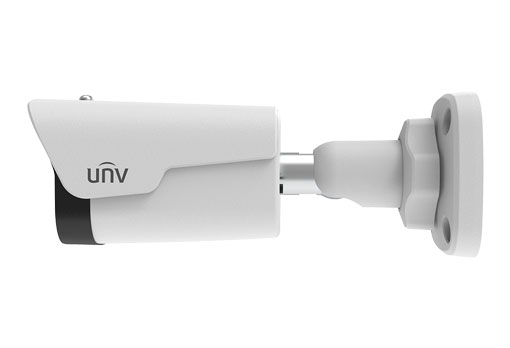

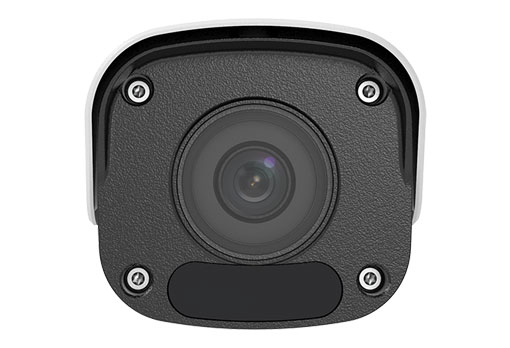

IPC2128LR3-DPF28LM-F

4K Mini Fixed Bullet Network Camera (Only for USA)
Category:

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.265, H.264, MJPEG

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C to 60°C (-22°F to 140°F)

* Wide voltage range of ±25%

* IP67

* 3-Axis

IPC2128LR3-DPF28LM-F
Camera
Sensor 1/3″, 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 84 33.6 16.8 8.4
4.0mm 120 48 24 12
Angle of View (H) 112.7°
Angle of View (V) 60.1°
Angle of View (D) 146.5°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.05 Lux (F2.0, AGC ON)
0 Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >56dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline Profile, Main Profile
Frame Rate Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps
Sub Stream:720P (1280*720): Max. 20 fps
Third Stream:4CIF (704*576): Max. 20 fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
Compatible Integration ONVIF(Profile S, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 10/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (L × W × H) 167.3×62.9×62.7mm (6.6″ ×2.5″ ×2.5″)
Net Weight 0.45kg (0.99lb)
Material Metal
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Strorage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button Supported
