JXG-213-F

Product Overview

JXG-213-F digital detection face recognition access control terminal is a kind of access control device with precise recognition rate, large storage capacity and fast recognition, which integrates face recognition technology and non-contact temperature detection technology. The digital detection module supports rapid body temperature detection. Thus, the product can achieve face recognition and temperature detection at the same time, and support warning people with abnormal body temperature. It can be widely applied in the crowded places, such as smart communities, schools, office buildings, hospitals and other important areas.

Applicable Uses

  • Railways stations
  • Government Buildings
  • Bus stations
  • Enterprises and Institutions
  • Airports
  • Shopping malls
  • Hospitals
  • Parks
  • Schools
  • Any other public places
Specification Table
Features Parameter Description
Operation System Linux
Face Recognition Accuracy Rate >99%
Face Recognition Time 200ms
Face Capacity 10,000
Card Capacity 100,000
Storage Capacity 4GB
Event Capacity 8,000 (with images)
Measurement Range 86℉ - 113℉
Measurement Deviation ≤0.54℉
Measurement Distance 3.28'
Authentication Mode Face Whitelist∶ (1∶ N)
Card:(1:N)
Face +Body temperature
Mask Detection
Door Opening Method Face, Password, QR code, Card
Communication Mode 10/100Mbps adaptive network port
Card Type Mifare 1 Card
User Management Support user library addition, deletion, update
Record Management Support local recording and real-time upload
Interface LAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1, Lock×1, Door Contact ×1, Exit Button×1
Power Supply Input 12V±25% DC
Screen Touch Screen, Size:7 inch, Resolution: 600×1024
Camera Dual Lens, 2MP, 1080P
Supplement Light LED soft light and infrared light
Dimensions (L×W×H) For terminal : 134.0mm×33.0mm×305.0mm
Working Environment For terminal: -4℉-149℉, Relative Humidly < 95% (non-condensing)
For module: 59℉-86℉
Protection Level Both terminal and module: IP 54
Applicable Environment Indoor, No wind

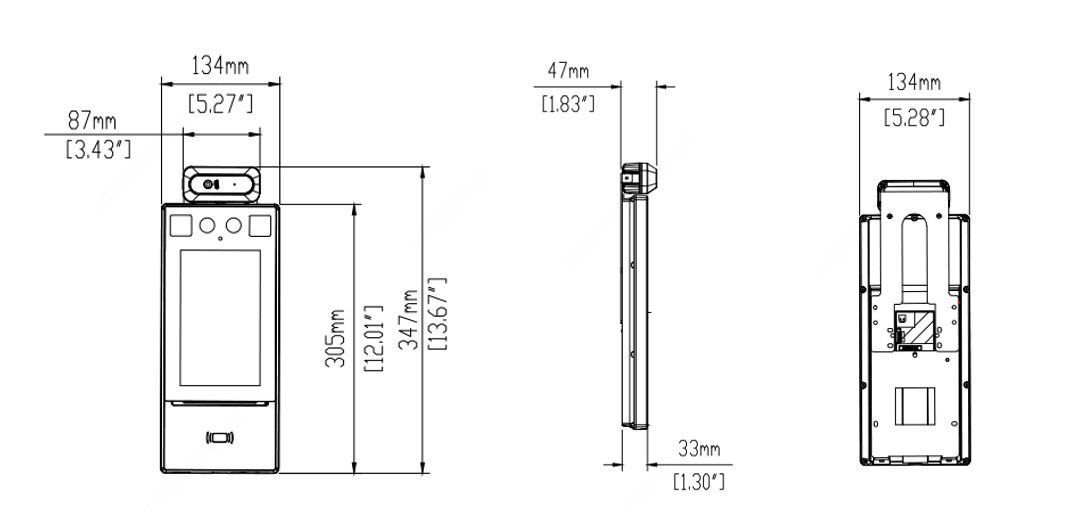

Product Dimensions

JXG-213-F in Action
